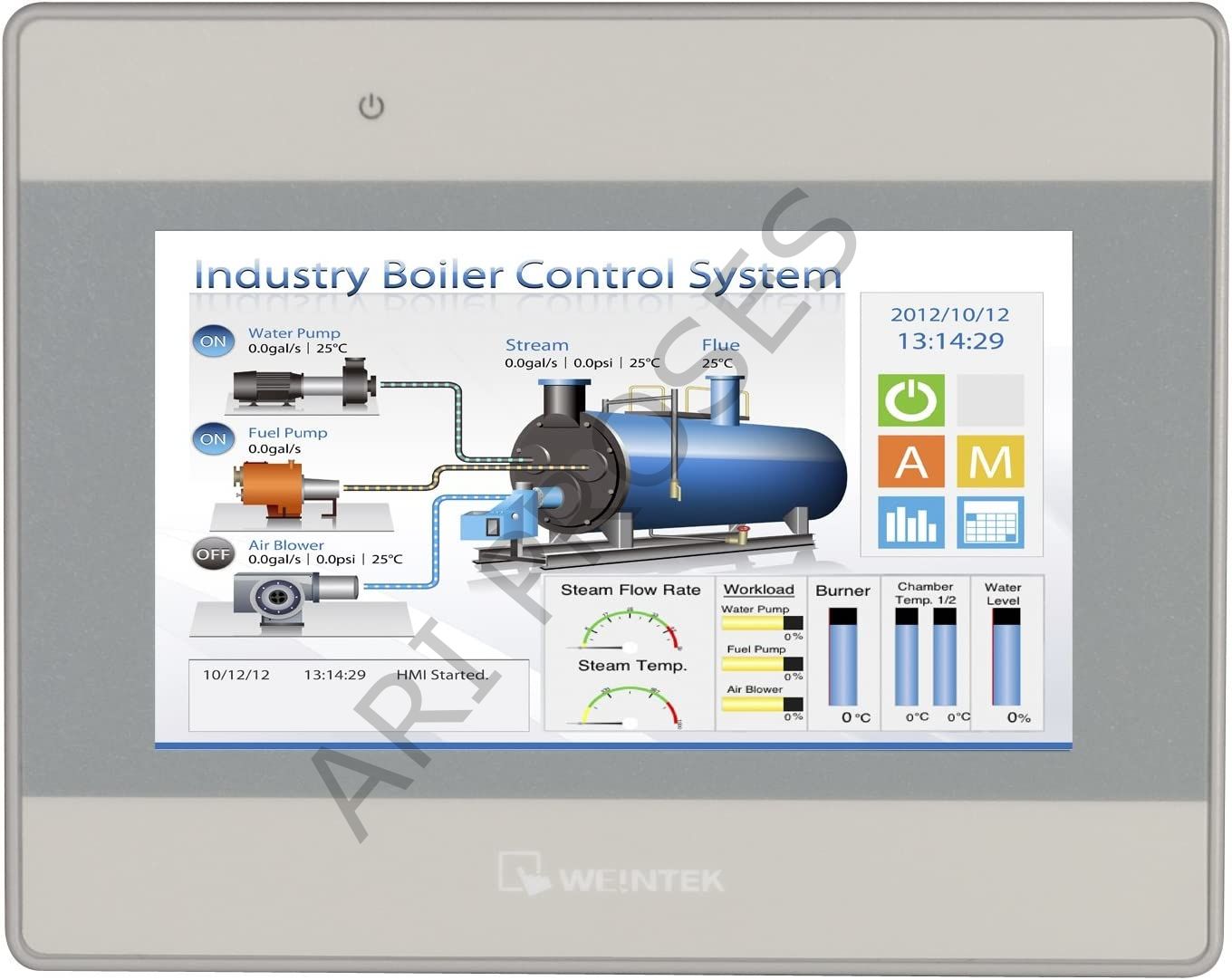

Weintek MT8050iE 4,3'' HMI Panel

Marka

Weintek

Stok Kodu

MT8050iE

Kategori

HMI

TFT, 16.7M RENK, 600MHz CPU, 480x272, Ethernet Portu, MPI 187.5K

Display :	4.3" TFT
Resolution:	480x272
Brightness (cd/m2) :	400
Contrast Ratio :	500:1
Backlight Type :	LED
Backlight Life Time :	>30.000 Hours (saat)
Colors :	16.7 M
LCD Viewing Angle (T/B/L/R) :	50/70/70/70
Type :	4-Wire Resistive Type
Accuacy :	Active Area Lenght (X & Y) +-2%
Flash :	128 MB
RAM :	128 MB
Processor :	32-Bit RISC 600 MHz
I/O Port - USB Host :	USB 2.0 x 1
Ethernet :	10/100 Base-T x 1
COM Port :	COM1: RS-232/RS-485 2W/4W , COM3: RS-485 2W
RTC :	Built-in
Input Power :	22 ~ 28 VDC (24 Volt DC)
Power Consumption :	450mA at 24V DC
Enclosure :	Plastic
Dimensions :	128x102x32 mm
Panel Cutout :	119 x 93 mm
Weight :	Approximity 0.25 kG
Mount :	Panel Mount
Protection Structure :	NEMA4 / IP65 Compliant Front Panel
Operating Temperature :	0 ~ 45 Celicus Degree
CE :	CE Marked
UL :	cULus Listed
Software - Weincloud :	EasyAcees 2.0 (Optional)
