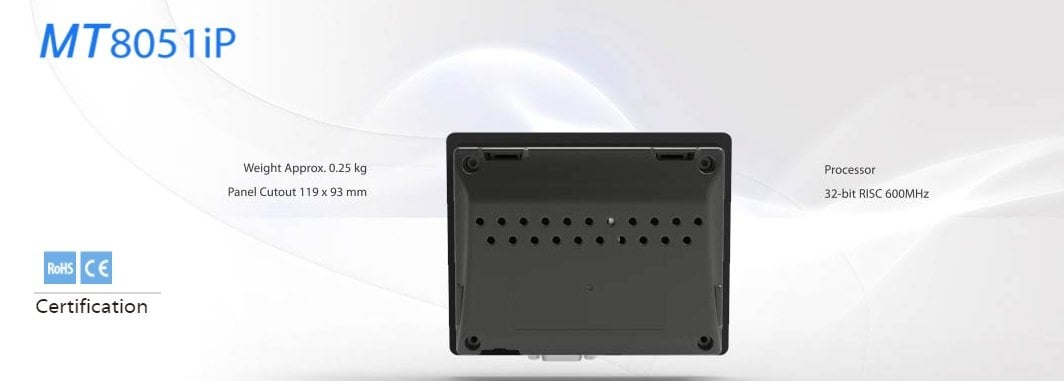

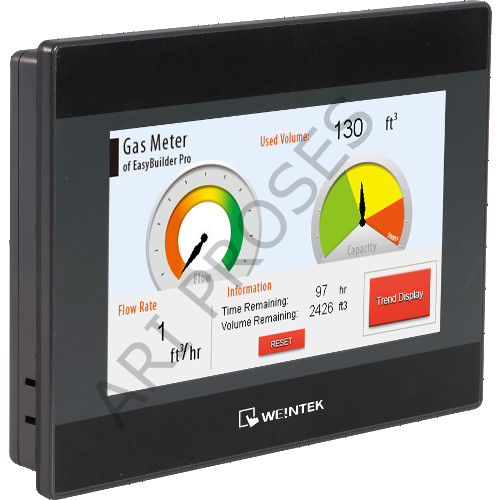

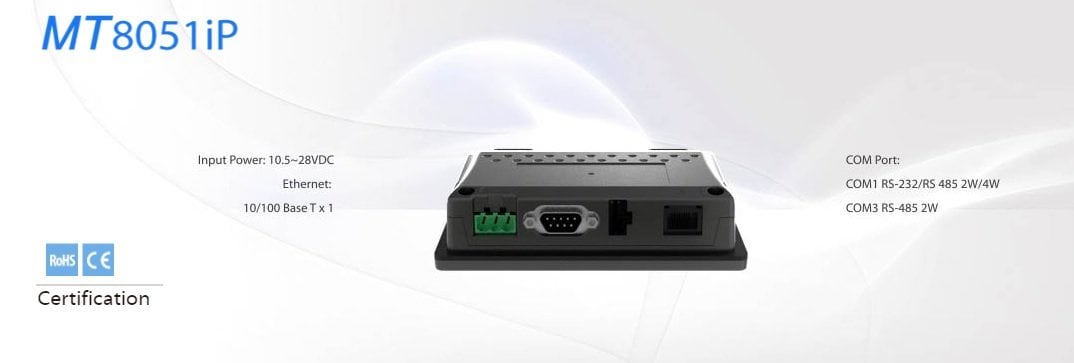

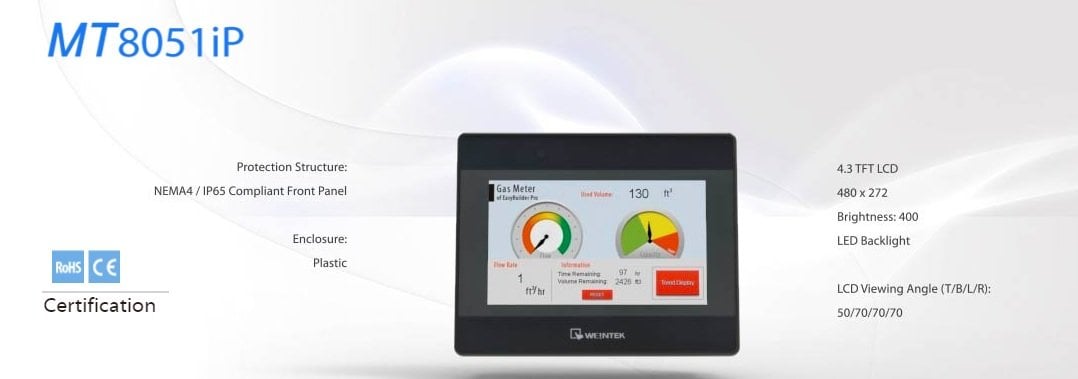

Weintek MT8051iP 4,3'' HMI
TFT,16.7M RENK, 600MHz CPU, 480x272 Ethernet Portu
KDV Dahil Fiyatıdır.
| Display : | 4.3" TFT |
| Resolution : | 480x272 |
| Brightness (cd/m2) : | 400 |
| Contrast Ratio : | 500:1 |
| Backlight Type : | LED |
| Backlight Life Time : | >30.000 Hours (saat) |
| Colors : | 16.7 M |
| LCD Viewing Angle (T/B/L/R) : | 50/70/70/70 |
| Type : | 4-Wire Resistive Type |
| Accuacy : | Active Area Lenght (X) +-2% |
| Flash : | 128 MB |
| RAM : | 128 MB |
| Processor : | 32-Bit RISV 600 MHz |
| I/O Port - USB Host : | USB 2.0 x 1 |
| Ethernet : | 10/100 Base-T x 1 |
| COM Port : | COM1: RS-232/RS-485 2W/4W , COM3: RS-485 2W |
| RTC : | Built-in (CR2032 3V Lithium Battery) |
| Input Power : | 10.5 ~ 28 VDC |
| Power Consumption : | 800mA at 12V DC ; 400mA at 24V DC |
| Enclosure : | Plastic |
| Dimensions : | 128x102x32 mm |
| Panel Cutout : | 119 x 93 mm |
| Weight : | Approximity 0.25 kG |
| Mount : | Panel Mount |
| Protection Structure : | NEMA+ / IP65 Compliant Front Panel |
| Operating Temperature : | 0 ~ 50 Celicus Degree |
| CE : | CE Marked |
| Software - Weincloud : | EasyAcees 2.0 (Optional) |
Sertifikasyon
CE Sertifikası
RoHS
Broşür
Datasheet
Manual Kurulum İşletme Talimatı
Weintek , HMI , Panel , Touch Sceen , MT8051iP , MT8051IP, MT8052iP , MT8052IP
Bu ürüne ilk yorumu siz yapın!
1000 TL Üzeri Ücretsiz Kargo (30 Kg/Desiye kadar)
%40
13.401,47 TL
8.020,78 TL
Bu ürünü 655,03 TL’den başlayan taksitlerle satın alabilirsiniz.
Fiyat
265,00 USD + KDV
