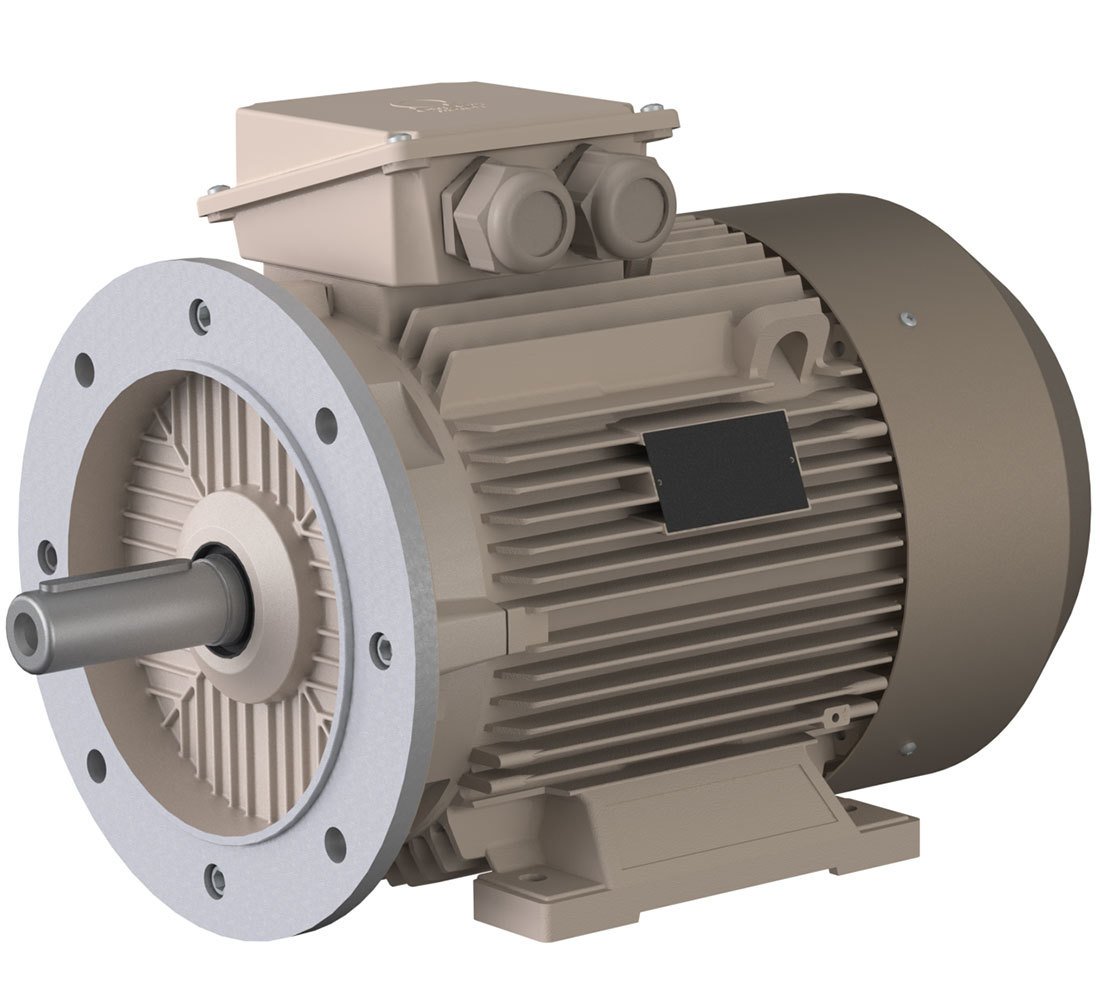

3MGS 225M4 / 45 kW 1500 rpm B35 IE3 Pik Gövde Omega Motor - 3M0SG3E-22MA40CT0
Marka
Stok Kodu
3MGS 225M4 / 45 kW 1500 rpm B35 IE3 Pik Gövde Omega
Kategori
3 Fazlı, tam kapalı, fan soğutmalı, sincap kafesli asenkron motor
3 Phase, totally enclosed, fan-cooled, squirrel cage induction motor
| Product Code | 3M0SG3E-22MA40CT0 | ||
|---|---|---|---|
| Motor Type | 3MGS 225M4 | ||
| Mounting Method | IMB35 | ||
| Terminal Box Location | Üstte | ||
| Efficiency Class | IE3 | ||
| Output Power | 45,00 kW | ||
| Synchronous Speed | 1500 rpm | ||
| Body Material | GG20 | ||
| Body Size | 225M4 | ||
| Phase | 3 | ||
| Frequency | 50 | ||
| Voltage | 400 / 690 V (D/Y) | ||
| Number of Poles | 4 | ||
| Current | 80,18 / 46,48 A ( / ) | ||
| Torque | 289,50 Nm | ||
| Moment of Inertia | 0,613 kg.m² | ||
| Load | 4/4 100% Load | 3/4 75% Load | 2/4 50% Load |
| Efficiency | 94,2 % | 94,6 % | 94,4 % |
| Power Factor | 0,86 | 0,83 | 0,74 |
| Starting Current | 7,4 | ||
| Starting Moment | 2,7 | ||
| Breakdown Torque | 3,2 | ||
| Protection Degree | IP 55 | ||
| Insulation Class | F F | ||
| Temperature Increase Class | B B | ||
| Ambient Temperature | -20°C +40°C | ||
| Altitude | 1000 | ||
| Cooling Method | IC 411 | ||
| Noise of Level | 65 dB | ||
| Vibration Class | Derece A | ||
| Duty Type | S1 | ||
| Service Factor | 1,15 | ||
| Motor Rotation Direction | |||
| Approximate Rotor Weight | 106,0 kg | ||
| Approximate Motor Weight | 355,0 kg | ||
| Bearings | Ön (6204 ZZ/CM) | Arka (6204 ZZ/CM) |
